AI Overview & Quick Answer
Tension force is the pulling force transmitted along a string, rope, cable, or wire when pulled by forces acting from opposite ends. It acts along the length of the connector and always pulls away from the attached object.
- Basic Formula (Hanging Static Mass): $T = mg$
- Upward Acceleration (Elevator Problem): $T = m(g + a)$
- Downward Acceleration: $T = m(g – a)$
- SI Unit: Newton ($\text{N}$)
What Is Tension Force?
Tension force (denoted as $T$) represents the internal pulling vector transmitted through a flexible connector like a string, rope, cable, or chain. When a force stretches a material, molecular bonds resist displacement, creating pulling forces at both ends.
Understanding how tension behaves relies on core principles from Newton’s Laws of Motion: 3 Essential Laws, Formulas & Examples:
- Always a Pull, Never a Push: A flexible rope supports tension, but under compression, it buckles and tension drops to zero.
- Directional Orientation: Tension force always acts away from the body along the line of the string or cable.
- Massless & Inextensible Assumption: In standard classical mechanics, strings are treated as massless and non-stretchable. This guarantees that tension magnitude remains constant throughout the entire length.
- Newton’s Third Law Interaction: If a rope exerts an upward tension force $T$ on a hanging weight, the weight exerts an equal and opposite downward force $T$ on the rope.
Tension Formula Matrix & Derivations
Calculating tension force requires applying Newton’s second law ($\sum F = ma$) to a free-body diagram.
[ Ceiling ]
|
| Tension (T = mg)
|
+-----+
| m |
+-----+
|
v Weight (W = mg)
1. Tension for a Hanging Static Object
When a mass $m$ hangs vertically in static equilibrium ($a = 0$):
$$\sum F_y = T – mg = 0 \implies T = mg$$
Where:
- $T$ = Tension force ($\text{N}$)
- $m$ = Mass ($\text{kg}$)
- $g$ = Acceleration due to gravity ($9.8\,\text{m/s}^2$)
2. Tension When Accelerating (Elevator Problems)
When an elevator cable pulls an object of mass $m$ while accelerating:
- Accelerating Upward ($+a$):$$T – mg = ma \implies T = m(g + a)$$
- Accelerating Downward ($-a$):$$T – mg = -ma \implies T = m(g – a)$$
- Free Fall Acceleration ($a = g$):$$T = m(g – g) = 0\quad \text{(Apparent weightlessness)}$$
3. Tension in an Atwood Machine
An Atwood machine consists of two masses ($m_1$ and $m_2$) connected over an ideal frictionless pulley. Assuming $m_2 > m_1$:
- System Acceleration Formula:$$a = \frac{(m_2 – m_1)g}{m_1 + m_2}$$
- Tension Formula:$$T = \frac{2 m_1 m_2 g}{m_1 + m_2}$$
4. Tension at Angles (2D Vector Systems)
When two cables support a mass $m$ at angles $\theta_1$ and $\theta_2$ relative to the horizontal:
- Horizontal Equilibrium ($\sum F_x = 0$):$$T_1 \cos\theta_1 = T_2 \cos\theta_2$$
- Vertical Equilibrium ($\sum F_y = 0$):$$T_1 \sin\theta_1 + T_2 \sin\theta_2 = mg$$
Key Differences: Tension vs. Normal Force vs. Weight
| Force Category | Source / Cause | Direction | Contact Type |
| Tension ($T$) | Stretching of ropes, cables, strings | Parallel to string, pulling away from object | Contact via flexible connector |
| Normal Force ($N$) | Surface resistance against compression | Perpendicular ($\perp$) to surface, pushing away | Direct surface contact |
| Weight ($W$) | Gravitational field attraction ($W = mg$) | Vertically downward toward Earth’s center | Non-contact field force |
Worked Physics Examples
Worked Example 1: Hanging Mass in Equilibrium
Problem: A $10\,\text{kg}$ lamp hangs stationary from a steel wire. Calculate the tension in the wire.
Solution:
- Identify variables: $m = 10\,\text{kg}$, $g = 9.8\,\text{m/s}^2$, $a = 0$.
- Apply static equilibrium equation:$$T = mg = 10 \times 9.8 = 98\,\text{N}$$
Worked Example 2: Elevator Acceleration
Problem: An $80\,\text{kg}$ person stands in an elevator attached to a support cable. Determine the tension force exerted by the cable when the elevator accelerates upward at $2.5\,\text{m/s}^2$.
Solution:
- Identify variables: $m = 80\,\text{kg}$, $a = +2.5\,\text{m/s}^2$, $g = 9.8\,\text{m/s}^2$.
- Apply upward acceleration equation:$$T = m(g + a) = 80 \times (9.8 + 2.5) = 80 \times 12.3 = 984\,\text{N}$$
Worked Example 3: Atwood Machine Calculation
Problem: Two masses $m_1 = 3.0\,\text{kg}$ and $m_2 = 5.0\,\text{kg}$ are suspended over an ideal pulley. Calculate system acceleration and string tension.
Solution:
- Compute system acceleration:$$a = \frac{(5.0 – 3.0) \times 9.8}{3.0 + 5.0} = \frac{2.0 \times 9.8}{8.0} = 2.45\,\text{m/s}^2$$
- Substitute $a$ into $m_1$’s motion equation:$$T = m_1(g + a) = 3.0 \times (9.8 + 2.45) = 3.0 \times 12.25 = 36.75\,\text{N}$$
Worked Example 4: Connected Horizontal Masses
Problem: A $4\,\text{kg}$ block ($A$) and a $2\,\text{kg}$ block ($B$) rest on a frictionless surface connected by a string. A force $F = 18\,\text{N}$ pulls block $B$ horizontally. Find the string tension $T$.
Solution:
- Calculate total system acceleration:$$a = \frac{F}{m_A + m_B} = \frac{18}{4 + 2} = 3.0\,\text{m/s}^2$$
- Tension pulls block $A$ alone:$$T = m_A \times a = 4 \times 3.0 = 12\,\text{N}$$
Worked Example 5: Tension at Symmetrical Angles
Problem: A $20\,\text{kg}$ sign hangs symmetrically from two cables, each making a $45^\circ$ angle with the ceiling. Find the tension in each cable.
Solution:
- Symmetrical angles imply $T_1 = T_2 = T$.
- Apply vertical force balance:$$2T \sin(45^\circ) = mg$$$$2T \times 0.7071 = 20 \times 9.8 = 196\,\text{N}$$$$1.4142 T = 196 \implies T = 138.6\,\text{N}$$
Tension Force in Real-World Engineering & Biology

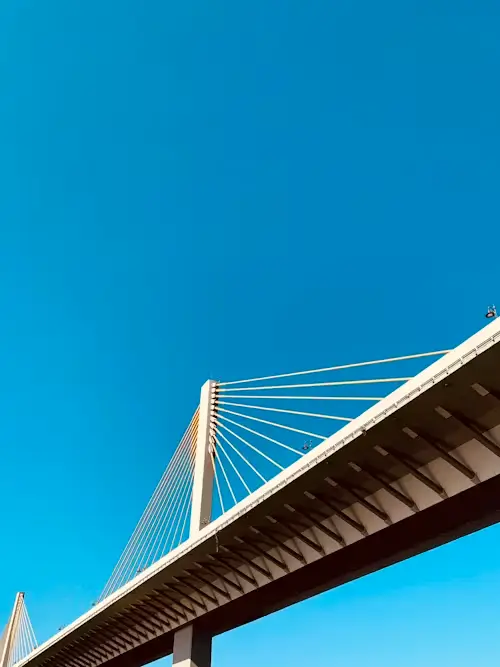

- Suspension Bridges: Main load-bearing cables on structures like the Golden Gate Bridge carry tensile loads exceeding $160\,\text{MN}$ ($16,000\,\text{tonnes-force}$) using high-strength steel strands.
- Biological Tendons: Human tendons transfer muscular contraction forces to bones. The Achilles tendon experiences peak tensile forces between $3,000\,\text{N}$ and $5,000\,\text{N}$ during running.
- Crane Cable Safety: Engineering designs apply safety factors ($3\times$ to $5\times$) above the maximum expected operational $T = m(g + a)$ to prevent tensile failure during dynamic stops.
Common Pitfalls & Errors in Tension Calculations
- Assuming $T = mg$ Always: Tension only equals weight when acceleration is zero ($a = 0$) and the rope is strictly vertical. Always set up $\sum F = ma$ explicitly.
- Ignoring Vector Components: Ropes pulling at angles require resolving forces into $T \cos\theta$ and $T \sin\theta$ components before adding equations.
- Combining Systems Too Early: In multi-mass problems, draw separate free-body diagrams for each mass rather than treating everything as a single lumped point.
- Neglecting String Mass in Advanced Mechanics: Heavy ropes introduce varying tension along their length because upper segments support the weight of lower rope segments.
Frequently Asked Questions
What is tension force?
Tension force is a pulling force transmitted along a string, rope, wire, or cable when forces act from opposite ends. It acts parallel to the connector and pulls away from attached objects.
What is the primary formula for tension?
For a stationary hanging mass, the formula is $T = mg$. For an accelerating mass, the general formula is $T = m(g \pm a)$.
Is tension constant throughout a rope?
In an ideal massless and frictionless rope, tension magnitude is uniform throughout its entire length. In real heavy ropes, tension increases higher up the rope to support the rope’s own weight.
How does acceleration affect elevator cable tension?
Upward acceleration increases cable tension ($T = m(g + a)$), making objects feel heavier. Downward acceleration decreases cable tension ($T = m(g – a)$).
What is an Atwood machine?
An Atwood machine is a classic physics setup featuring two masses connected by a string over a pulley. It demonstrates Newton’s second law under constant acceleration.
How does tension relate to Newton’s Third Law?
Ropes transmit equal and opposite reaction forces at both ends. The string pulls on the object, and the object pulls back on the string with equal magnitude in the opposite direction.
